상세 정보 |
|||
모델: | 500A1 | 가방 길이: | 50-150mm |
---|---|---|---|
가방 폭: | 40-150mm | 포장 영화 폭: | 100-320mm |
패키지 볼륨: | 0-500ml | 패킹 속도: | 시간 당 2000-2200BAGS |
힘: | 1.6Kw | 외부 차원: | 880*760*1800mm |
하이 라이트: | 500ML 유동적 샤쉐 곤포기,자동 액체 샤쉐가 machine,500ML 자동 샤쉐 곤포기를 쌉니다 |
제품 설명
Sachet liquid filling machine with plastic bag for water/oil/soy sauce/milk pouch packing
Features:
1.The whole process is completed automatically and highly efficient.
2. Either under set length control or photoelectric color tracing, bag length is set and cut in one step.
3. The temperature is under independent PID control, more suitable for different packing materials, the tolerance is ±1%.
4. Equip easy tear-off gap device, so there is an easy tear-off gap on each finished product.
5. The driving system is simple and reliable, and maintenance is easy.
6. Main parts are made of stainless steel, meet the GMP standard.
7. Automatic self support lubricating system, the machine can continuous more than 24 hours.
8. Applicable material should be composite film like: PET/PE, Paper/PE, PET/AL (PET-AL), PE, OPP/PE etc.
1.The whole process is completed automatically and highly efficient.
2. Either under set length control or photoelectric color tracing, bag length is set and cut in one step.
3. The temperature is under independent PID control, more suitable for different packing materials, the tolerance is ±1%.
4. Equip easy tear-off gap device, so there is an easy tear-off gap on each finished product.
5. The driving system is simple and reliable, and maintenance is easy.
6. Main parts are made of stainless steel, meet the GMP standard.
7. Automatic self support lubricating system, the machine can continuous more than 24 hours.
8. Applicable material should be composite film like: PET/PE, Paper/PE, PET/AL (PET-AL), PE, OPP/PE etc.
Model list and technical specifications:
Model
|
500A1
|
1000A1
|
500A-2
|
Bag length (mm)
|
50-150
|
50-250
|
50-150 |
Bag width (mm)
|
40-150
|
40-175
|
40-150
|
Packaging film width (mm)
|
100-320
|
100-380
|
100-320
|
Package volume (ml)
|
0-500
|
0-1000
|
0-500
|
Packing speed (bags/h)
|
2000-2200
|
1100-1300
|
2000-2200
|
Power (kw)
|
1.6
|
2.5
|
1.6
|
External dimensions (mm)
|
880*760*1800
|
1050*850*2050
|
850*760*1800
|
Weight (kg)
|
275
|
380
|
275
|
General:
1, Application: all kinds of liquid without gas, especially soy, wine, vinegar, juice, fruit pulp, soybean
milk, peanut oil, vegetable oil, plant oil, mineral water, and liquid chemical products.
2, Sealing style: back sealing
3, Function: film sterilization,auto complete Bag-making, filling, sealing, printing, cutting and
counting
4, Whole machine with stainless steel covering, With foot wheels for easy transportation;

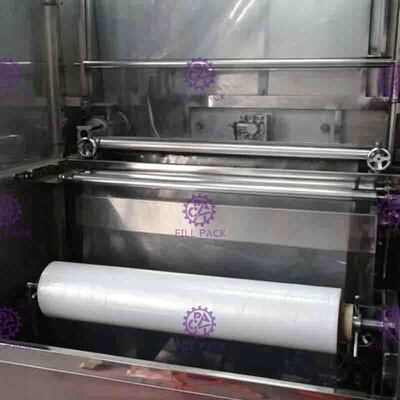

Packaging film parameters:
Material: | LDPE | ||
Printing: | 1-6 colors | ||
Width: | 320mm (suitable for up to and including 500ml);350mm (suitable for 1000ml) | ||
Thickness: | 75micron,80micron,90micron(suitable for 1000ml) | ||
Sachet volume: | 250ml,330ml,400ml,500ml,1000ml | ||
Packing detail: | 18kg/roll,1 roll/carton | carton size: | 30*30*33.5cm |
1ton have 1.72cbm,20' container could load 898 cartons,about 17tons. | |||
1kg film could make how many pcs 500ml sachet with different thickness: | |||
80micron thickness: | 1kg roll film could make about 280 sachets | ||
75micron thickness: | 1kg roll film could make about 298 sachets | ||
1kg film could make how many pcs 1000ml sachet with 90micron thickness: | |||
90micron thickness: | 1kg roll film could make about 136 sachets | ||

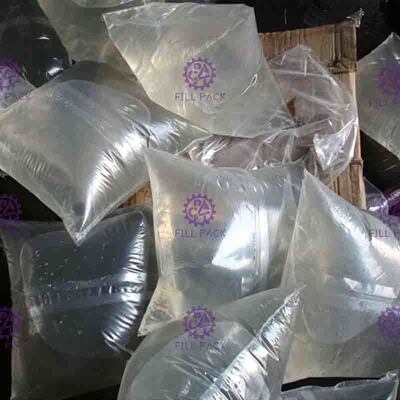

Application: | water pouch packaging, water sachets, pure water packaging,mineral water packaging,flavoured water bag packaging,Juice packaging,water bags packaging |
We can also provide matching water treatment lines.
