쉬링크 터널 곤포기를 줄이는 세미 오토매틱 폴리에틸렌필름 포장

쉬링크 터널 곤포기를 줄이는 세미 오토매틱 폴리에틸렌필름 포장

제품 상세 정보:

원래 장소: 장자강 시 시 장쑤성 중국
브랜드 이름: FILLPACK
인증: CE
모델 번호: BZJ-5538,BSE-6040

결제 및 배송 조건:

최소 주문 수량: 1개 세트
가격: USD 3000-3300 PER SET
포장 세부 사항: 나무로 되는 케이스 포장
배달 시간: 15 일 일
지불 조건: T/T, 서부 동맹, MoneyGram, D/P, D/A, L/C
공급 능력: 달 당 15 세트
최고의 가격 접촉

상세 정보

키워드: 폴리에틸렌필름 포장 기계 기계 유형: 반 자동
수축 필름 재료: PE 보온병 수축 필름 포장 크기: 300ml-2.5L개의 병
패킹 속도: 0-5 packs/ 분 압력: 380/220V
기계 하중: 460kgs 열 축소 터널 온도: 160 - 260은' 뜻대로 조정될 수 있습니다
하이 라이트:

PE 쉬링크 터널 곤포기

,

쉬링크 터널 곤포기를 감싸기

,

PE 열 터널 쉬링크 랩 기계

제품 설명

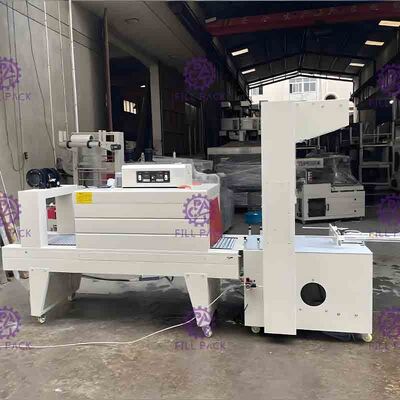

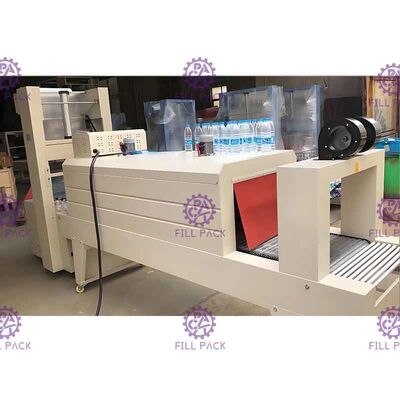

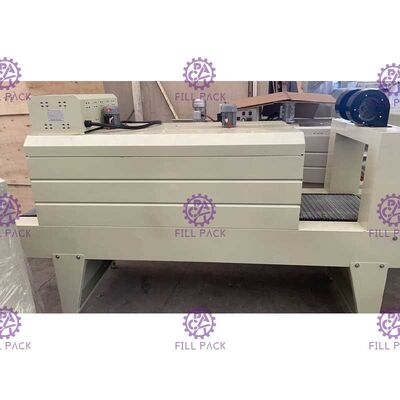

Semi automatic PE film wrapping cutting shrink tunnel bottle packing machine



Quick Detail:


1,  Pneumatic component 1set
2,  Speed adjustment motor 1 set
3,  Stainless iron wing type heating tube
4,  Stainless steel convey belt
5,  Thermos sealing knife cast aluminum heating board has the character as even temperature, long life, is our special product.
6,  Whole machine outer plastic-sprayed, the frame is made of high-quality carbon steel, main part adopt to stainless steel.





Description & Working principles:



This is a combined machine, divided into two parts:PE Film wrapping-cutting unit and Pack shrink tunnel



Shrink packing is one of the developed packing method in current market, it uses shrink film wrapping outside the products. after heating, the film will shrink, it will show the goods better and it will improve sales of the goods, increase value of the goods.
At the meantime, the goods after packing will be prevented from moisture and pollution, it will buffer the outside conflict, especially when the goods is easy to break, it will stop the scatter. Workers put bottles as arranged group requirement, we will give group arrangement helping device for easy arrangement, after bottle arrangement, worker press start to indicated the wrapping device to wrap PE film on the group of bottles, then film cutting, group transmission and final shrinkage will be done by machine automatically.



Specifications:

PE Film wrapping
-cutting unit
BZJ-5538

Pack Shrink tunnel
BSE-6040
Max wrapping size:
350*550*380mm
Tunnel inner size:
1500*600*400mm
Max sealing length:
550mm
Shrinkage Power source:
AC 380 V 3PH
Working air pressure requirement:
0.1m³/min
Shrinkage Power:
20KW
Power source:
AC220-240V 50/60HZ
Blower:
1set 60W
Power:
40W
Conveyor motor:
AC 220V /120W
Dimension:
1100*1100*2050mm
Conveyor speed:
0-10m/min
Weight:
230kg
Max loading:
30Kg


Dimension:
2500*800*1450mm


Weight:
230kg





Competitive Advantage:



1. One year warranty for the whole system

2. Free equipment installation and debugging

3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price

4. Every 3 years, we can help to overhaul the machine free (Labor)

5. We can provide internship service and help you train the operator and mechanic

6. Free production technology and process configuration

7. We can help you to design the production line, workshop and provide turn-key project
